ABOUT PRODUCT
Super long arm barrier gate is suitable for railway, railway-road mixed traffic control crossings, port docks, and other occasions. It uses a double-arm design to meet the length requirements of large intersections, and it solves the technical problems of insufficient power, bending and deformation of long arms, insufficient strength, and poor wind resistance.
ADVANCED FEATURES
1. Advanced mechatronics Side-mounted design concept structure compact, quickly assembly, easy maintenance.
2. Molding production: high precision, fast efficiency and guaranteed quality.
3. Advanced fourth level gear transmission design concept: high precision. long lifetime, no blocking. no oil leakage, large torque, low noise .can normally operation at the temperature of -35°C etc.
4. DC brushless motor design, low consumption, high efficiency, no overheat, wide speed adjustment, make arm open and close fast and stable.
5. Hall limit: automatically detects the limit when power on without debugging. high precision. detecting the motor speed at all times and running at constant and stable speed 6.Curved triple connecting rod structure design concept makes arm in vertical and horizontal position. easy to adjust the arm balance, avoid to lift arm violently.
7.Arm direction quickly interchanged: interchanged according to different directions on construction site. reduce inventory and capital pressure.
8.Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply, adapt to global voltage, safe and reliable.
FUNCTIONS
1.Operation speed can be adjusted.
2. Slow up and slow down can be adjusted.
3. The limit angle can be adjusted.
4. Left and right direction can be quickly interchanged.
5.The barrier arm can be manually operated in case of power failure.
6.418 frequency learning code anti-copy remote controller.
7.Infrared photocell sensor I/O signal input function.
8.Loop detector and radar I/O signal anti-collision signal input function.
9.Up,down and stop I/O signal input function.
10,Counting (fleet) function.
11.LED light lo signal output function.
12.Traffic light lo signal output function.
13.Up and down in place, normally open and normally closed signal output function.
14.RS485 communication output function.
15. Delay arm drop function.
16. Arm auto-reverse function.
17.Automatic lifting function when power is off (requires additional power storage module).
18, 10 port single-key cycle up and down function.
19.Loop detector normally open and normally closed function.
21.Anti-collision alarm function (requires additional fee, installation of alarm and sensor).
22.Fire linkage signal input function.
23.The l0 port closes the signal input function.
24. 24V storage battery input function.
Parameters of Barrier Arm Type,Length and Operation Speed
TECHNICIAL PARAMETERS
| Product Name | 10 meters long arm barrier gate |
| Product Model | DZ-2307 |
| Product Size | 350x310x1180(mm) |
| Working Temperature | -35℃~+65℃ |
| Power Supply | DC24V/AC110V/220V 50/60Hz |
| Running Speed | 3s~16s |
| Rated Power | 250W |
| Driving Method | DC Brush-less Motor |
| Humidity | <90% |
| Remote Control Distance | ≤100m (Open & Sunny Weather) |
| Protection Class | IP54 |
| Motor No-load Speed | 1850r/min |
| Adaptable Boom Length | 6m~12m |

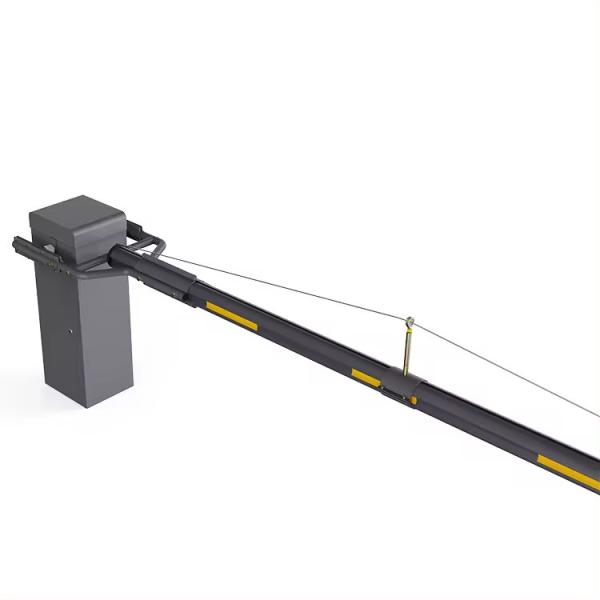

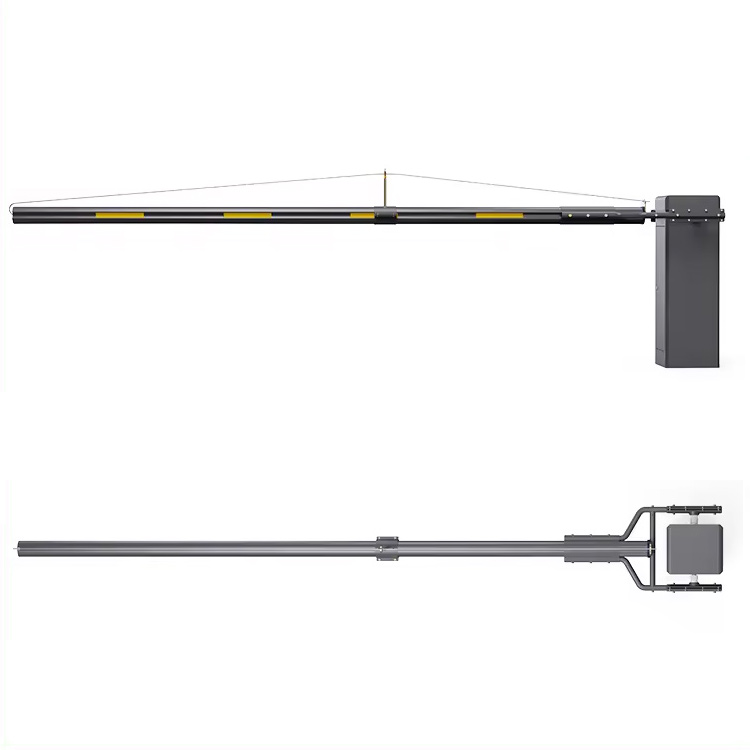

PRODUCT DISPLAY
