Heavy Duty Traffic Automatic Barrier Gate With Round Straight Boom 220V 120W

SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

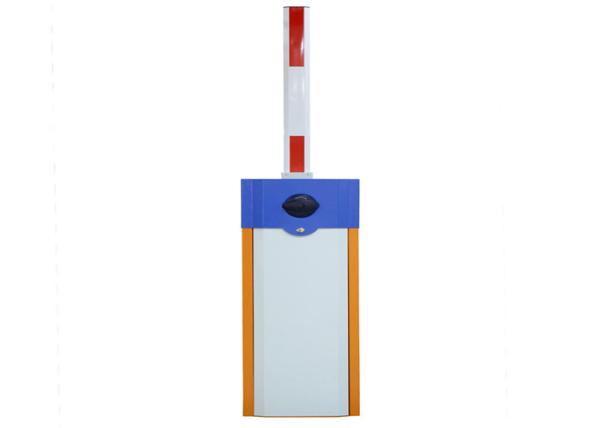

Heavy Duty Traffic Automatic Barrier Gate With Round Straight Boom 220V 120W

Brand Name : SINOMATIC

Model Number : SN-BG101

Certification : CE/ ISO

Place of Origin : Shenzhen, China.

MOQ : Sample order accepted

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/A, L/C, D/P

Supply Ability : 3,000pcs per month

Delivery Time : 5-10 working days after payment received

Packaging Details : Carton/Plywood box/Pallet

Product life : 5 million times

Surface finish : Powder coating

Arm length : Max 8 meters

Arm type : straight, folding and fencing are available

Color : Orange, yellow, red, blue, grey, black, white etc

Running time : 1s,3s, 6s

Contact Now

Traffic control system fast speed remote control automatic traffic barrier with round straight boom

Introduction of automatic traffic barrier:

  • Heavy duty. AC motor is stronger and maintenance free (no need to change carbon). Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
  • User friendly. Clutch can be conveniently released without opening casing. Arm can be easily lifted or closed by hand after clutch is released. More intuitive control – 3 separate input for arm up, stop and down.

Applications automatic traffic barrier:

Barrier gates are the ideal solution if you need to control vehicle transit in public parking areas, car parks, private and block of flats entrances, even when the traffic is heavy.

Features of automatic traffic barrier:

1. Manual release

2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3. Die-casting aluminum alloy motor, precision and good at thermal radiating

4. Motor cooling fan, solving the problem of heat-protection

5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6. Reversing on obstacle

7. Auto-closing

8. Support the INFRARER PHTOCELL for anti-bumping function (optional)

9. Support the external and internal VEHICLE LOOP DETECTOR (optional)

10. Traffic light interface

11. Wire control (switch signal)/ Remote control (418MHZ)

12. RS485 communication module (optional)

Specifications of Automatic Barrier Gate:

Running time

1 sec

3 sec

6 sec

3 sec

6 sec

3 sec

6 sec

3 sec

6 sec

Boom type

Straight

90°folding

180°folding

2 fence

3 fence

Max boom length

3m

4.5m

6m

3m

5m

3m

5m

4.5m

4m

Boom dimension (W×H)

45x80mm

45x100mm

Boom weight

3kg

4.5kg

5kg

6.5kg

8kg

9kg

11kg

7kg

7.5kg

Voltage

220V±10%, 110V±10%

Frequency

50/60HZ

Motor voltage

220V

Power

120W

Working temperature

-40°C~+75°C

Protection grade

IP44

Cases of automatic traffic barrier:

Heavy Duty Traffic Automatic Barrier Gate With Round Straight Boom 220V 120W

Why choose us:

1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
